Soil swelling potential chart

Source: R/soil_swelling.R
soil_swelling.Rd

Draws a soil swelling potential chart—clay activity vs clay percentage—with three boundary curves separating zones of low, medium, high, and very high swelling potential. Boundary curves are drawn; each zone is labelled directly on the chart with.

Usage

soil_swelling(lang = "en", clay.max = 70)

Arguments

lang

Character. Language for axis and legend titles: "en" (default) for English, "es" for Spanish.

clay.max

Numeric. Maximum value for the clay percentage axis. Default is 70.

Value

A ggplot object with clay percentage on the x-axis and clay activity on the y-axis, containing the three boundary curves coloured by expansion level ("1.5%", "5%", "25%") and their zone labels ("Low" / "Medium" / "High" / "Very high").

References

Holtz, R. D., Kovacs, W. D., & Sheahan, T. C. (2023). An Introduction to Geotechnical Engineering (3rd ed.). Pearson Education.

See also

Other classification plots, soil mechanics: Casagrande_chart(), clay_activity(), soil_collapse(), soil_expansion(), ternary_shepard(), ternary_usda()

Examples

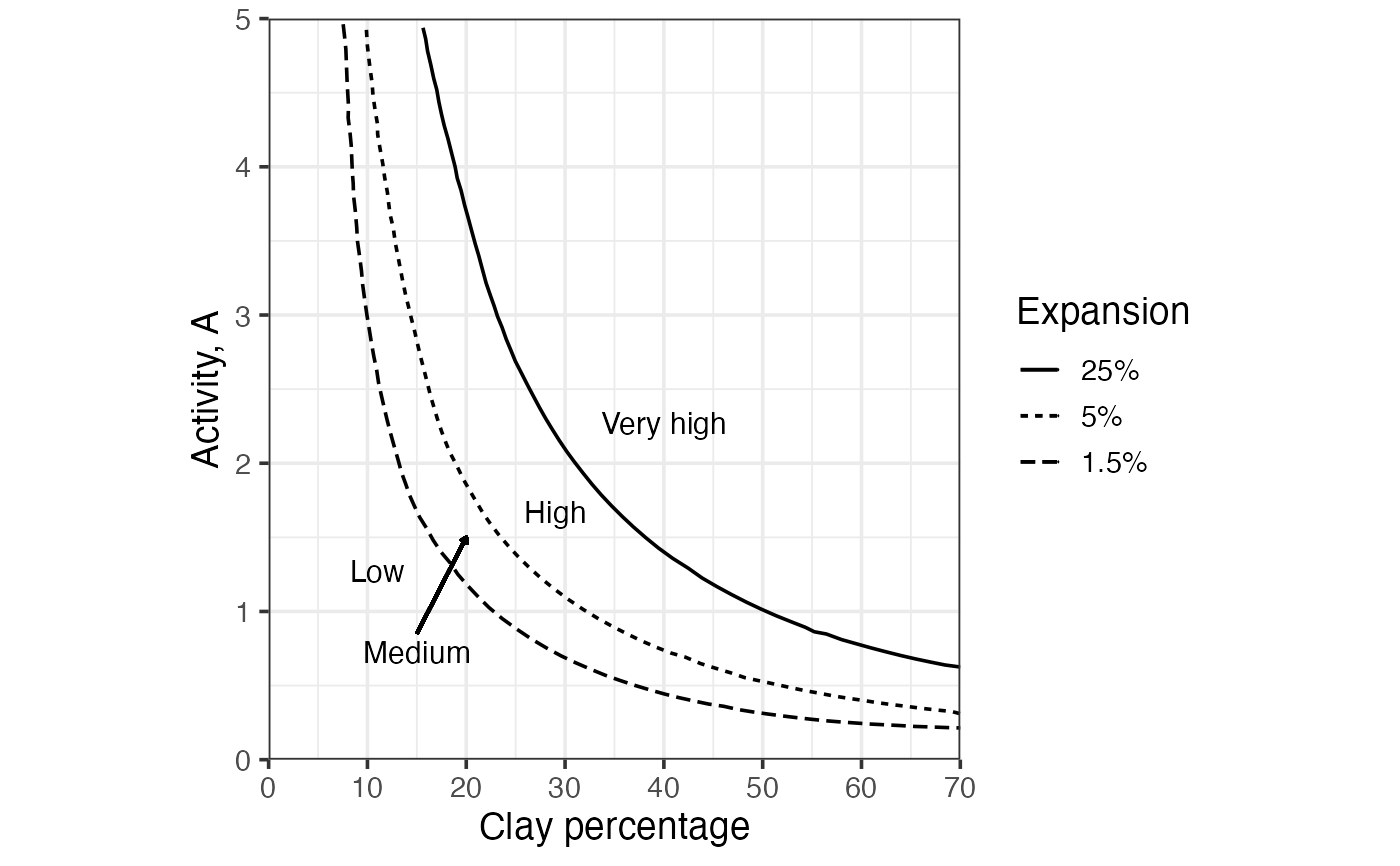

# English labels (default)
soil_swelling()


dat = data.frame(
  clay = c(20, 40, 60),
  activity = c(.5, 1, 2),
  loc = c("A", "B", "C")
)

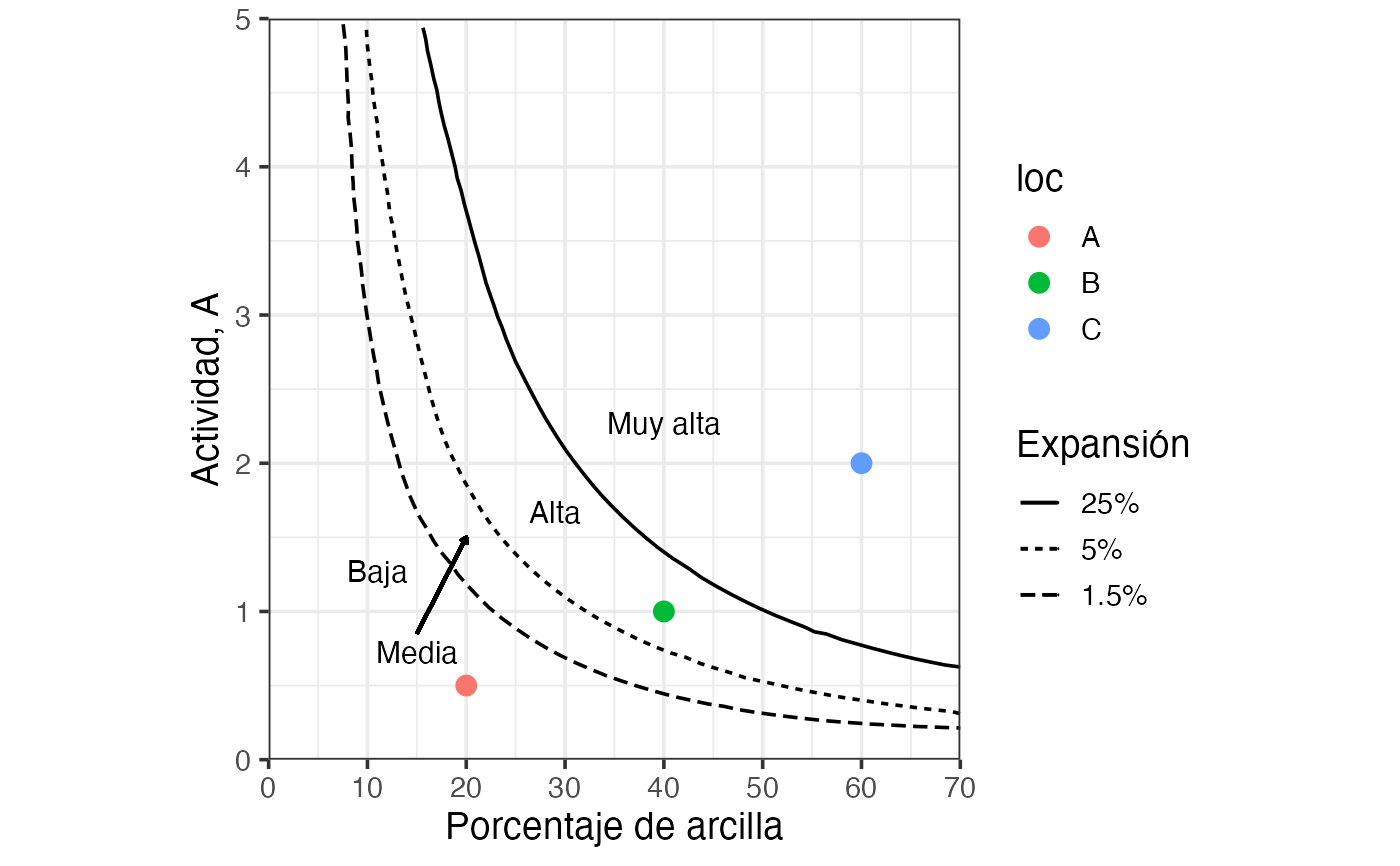

# Spanish labels
soil_swelling(lang = "es") +
ggplot2::geom_point(data = dat,
                    ggplot2::aes(x = clay, y = activity, color = loc),
                    size = 3,
                    inherit.aes = FALSE # needed
                   )
