Introduction

The GMisc package provides a collection of non-linear model functions together with self-starting routines for both nls() (base R) and drc::drm(). Self- starters automatically derive sensible initial parameter values from the data, removing the need to supply starting values manually and reducing the risk of convergence failures.

Each model is available in three forms:

*.fun() — the bare mathematical function.
SS*() — a selfStart object for use with nls().
DRC*() — a drcMean object for use with drc::drm().

Available models

Model	Equation	Parameters	`nls` self-starter	`drc` self-starter
Chapman-Richards	y = a(1 - e^{-bx})^c	a, b, c	`SSchaprich()`	`DRCchaprich()`
Exp. with inverse predictor (Type 3)	y = a e^{b/x}	a, b	`SSexp3()`	`DRCexp3()`
Negative exponential	y = a + b e^{cx}	a, b, c	`SSexpneg()`	`DRCexpneg()`
Two-asymptote exponential	y = a e^{cx} + b(1 - e^{cx})	a, b, c	`SSexpneg2()`	`DRCexpneg2()`
Exponential variogram	y = \text{nug} + \text{psill}(1 - e^{-x/\text{range}})	nug, psill, range	`SSvarexp()`	`DRCvarexp()`
Gaussian variogram	y = \text{nug} + \text{psill}(1 - e^{-(x/\text{range})^2})	nug, psill, range	`SSvargauss()`	`DRCvargauss()`
Spherical variogram	y = \text{nug} + \text{psill}\left(\frac{3}{2}\frac{x}{r} - \frac{1}{2}\left(\frac{x}{r}\right)^3\right),\; x \le r	nug, psill, range	`SSvarsph()`	`DRCvarsph()`
Inverse polynomial (1st order)	y = \dfrac{x}{a + bx}	a, b	`SSinvpoly1()`	`DRCinvpoly1()`
Inverse polynomial (2nd order)	y = \dfrac{x}{a + bx + cx^2}	a, b, c	`SSinvpoly2()`	`DRCinvpoly2()`
Inverse polynomial (3rd order)	y = \dfrac{x}{a + bx + cx^2 + dx^3}	a, b, c, d	`SSinvpoly3()`	`DRCinvpoly3()`
Modified Kostiakov	y = \alpha x^{\beta} + f_c	\alpha, \beta, f_c	`SSkostmod()`	`DRCkostmod()`

Examples

1. Chapman-Richards growth model

The Chapman-Richards model describes sigmoidal growth towards an upper asymptote a:

y = a \left(1 - e^{-bx}\right)^c

set.seed(42)
x <- seq(0, 10, length.out = 60)
y <- chaprich.fun(x, a = 10, b = 0.5, c = 2) + rnorm(60, sd = 0.25)
df <- data.frame(x = x, y = y)

Fit with nls()

mod_nls <- nls(y ~ SSchaprich(x, a, b, c), data = df)
summary(mod_nls)
#>
#> Formula: y ~ SSchaprich(x, a, b, c)
#>
#> Parameters:
#>   Estimate Std. Error t value Pr(>|t|)
#> a 10.06996    0.10643   94.62   <2e-16 ***
#> b  0.45860    0.02496   18.38   <2e-16 ***
#> c  1.77995    0.11407   15.60   <2e-16 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error: 0.2832 on 57 degrees of freedom
#>
#> Number of iterations to convergence: 5
#> Achieved convergence tolerance: 2.883e-07

Fit with drc::drm()

mod_drc <- drm(y ~ x, data = df, fct = DRCchaprich())
summary(mod_drc)
#>
#> Model fitted: Chapman-Richards growth model
#>
#> Parameter estimates:
#>
#>                Estimate Std. Error t-value   p-value
#> a:(Intercept) 10.069934   0.105530  95.422 < 2.2e-16 ***
#> b:(Intercept)  0.458611   0.024683  18.580 < 2.2e-16 ***
#> c:(Intercept)  1.779977   0.113123  15.735 < 2.2e-16 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error:
#>
#>  0.2832407 (57 degrees of freedom)

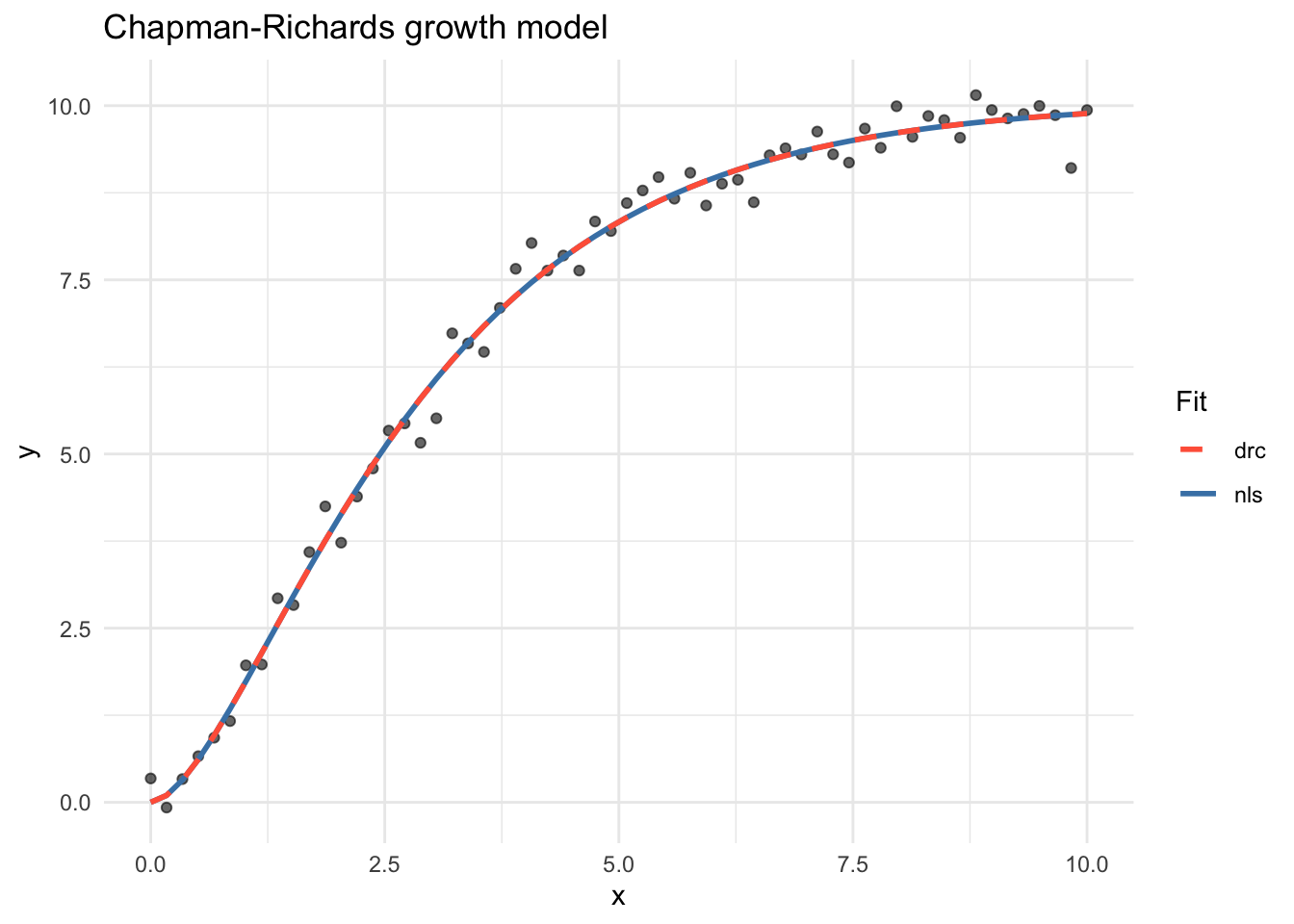

Plot

df$fit_nls <- predict(mod_nls)
df$fit_drc <- predict(mod_drc)

ggplot(df, aes(x, y)) +
  geom_point(alpha = 0.6) +
  geom_line(aes(y = fit_nls, colour = "nls"), linewidth = 1) +
  geom_line(
    aes(y = fit_drc, colour = "drc"),
    linewidth = 1,
    linetype = "dashed"
  ) +
  scale_colour_manual(values = c(nls = "steelblue", drc = "tomato")) +
  labs(
    title = "Chapman-Richards growth model",
    x = "x",
    y = "y",
    colour = "Fit"
  ) +
  theme_minimal()

2. Exponential variogram model

The exponential variogram is widely used in geostatistics to model spatial autocorrelation. It approaches the sill asymptotically:

\gamma(x) = \text{nug} + \text{psill}\left(1 - e^{-x / \text{range}}\right)

set.seed(7)
x <- seq(0, 100, length.out = 60)
y <- varexp.fun(x, nug = 0.1, psill = 0.9, range = 20) + rnorm(60, sd = 0.03)
df2 <- data.frame(x = x, y = y)

Fit with nls()

mod_nls2 <- nls(y ~ SSvarexp(x, nug, psill, range), data = df2)
summary(mod_nls2)
#>
#> Formula: y ~ SSvarexp(x, nug, psill, range)
#>
#> Parameters:
#>       Estimate Std. Error t value Pr(>|t|)
#> nug    0.09419    0.01697   5.551 7.71e-07 ***
#> psill  0.90220    0.01624  55.569  < 2e-16 ***
#> range 18.76848    0.72081  26.038  < 2e-16 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error: 0.02931 on 57 degrees of freedom
#>
#> Number of iterations to convergence: 4
#> Achieved convergence tolerance: 1.691e-07

Fit with drc::drm()

mod_drc2 <- drm(y ~ x, data = df2, fct = DRCvarexp())
summary(mod_drc2)
#>
#> Model fitted: Exponential variogram model
#>
#> Parameter estimates:
#>
#>                    Estimate Std. Error t-value   p-value
#> nug:(Intercept)    0.094185   0.016996  5.5417 7.992e-07 ***
#> psill:(Intercept)  0.902198   0.016245 55.5360 < 2.2e-16 ***
#> range:(Intercept) 18.768462   0.723650 25.9358 < 2.2e-16 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error:
#>
#>  0.02931391 (57 degrees of freedom)

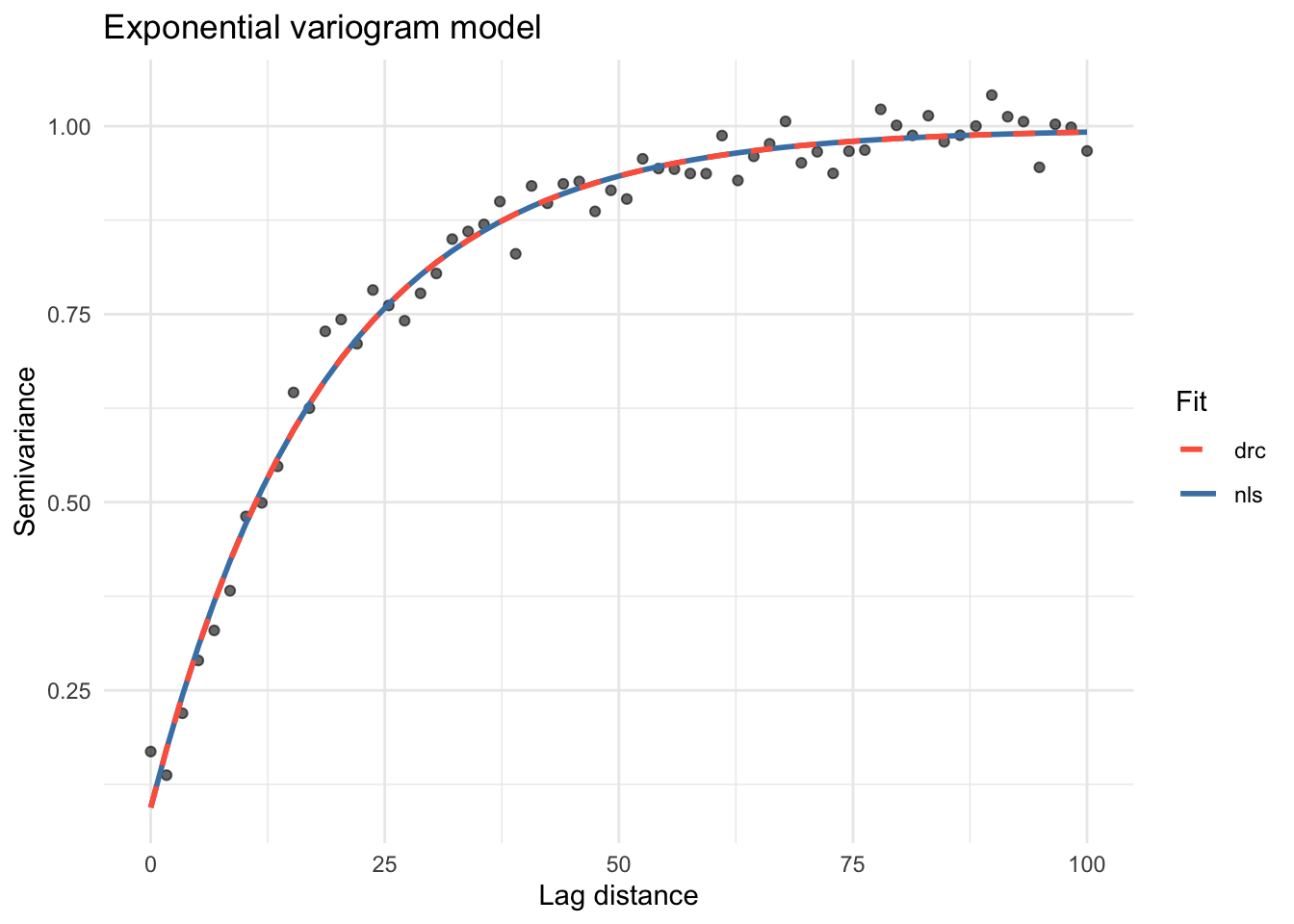

Plot

df2$fit_nls <- predict(mod_nls2)
df2$fit_drc <- predict(mod_drc2)

ggplot(df2, aes(x, y)) +
  geom_point(alpha = 0.6) +
  geom_line(aes(y = fit_nls, colour = "nls"), linewidth = 1) +
  geom_line(
    aes(y = fit_drc, colour = "drc"),
    linewidth = 1,
    linetype = "dashed"
  ) +
  scale_colour_manual(values = c(nls = "steelblue", drc = "tomato")) +
  labs(
    title = "Exponential variogram model",
    x = "Lag distance",
    y = "Semivariance",
    colour = "Fit"
  ) +
  theme_minimal()

3. Modified Kostiakov infiltration model

The Modified Kostiakov model describes infiltration rate as a power-law decay with an additive constant representing the steady-state rate f_c:

y = \alpha\, x^{\beta} + f_c

set.seed(99)
x <- seq(0.5, 40, length.out = 60)
y <- kostmod.fun(x, alfa = 0.5, beta = -0.6, fc = 0.05) + rnorm(60, sd = 0.02)
df3 <- data.frame(x = x, y = y)

Fit with nls()

mod_nls3 <- nls(y ~ SSkostmod(x, alfa, beta, fc), data = df3)
summary(mod_nls3)
#>
#> Formula: y ~ SSkostmod(x, alfa, beta, fc)
#>
#> Parameters:
#>      Estimate Std. Error t value Pr(>|t|)
#> alfa  0.51203    0.01563  32.768  < 2e-16 ***
#> beta -0.59698    0.03182 -18.764  < 2e-16 ***
#> fc    0.04094    0.01089   3.758 0.000405 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error: 0.01957 on 57 degrees of freedom
#>
#> Number of iterations to convergence: 4
#> Achieved convergence tolerance: 1.916e-06

Fit with drc::drm()

mod_drc3 <- drm(y ~ x, data = df3, fct = DRCkostmod())
summary(mod_drc3)
#>
#> Model fitted: Modified Kostiakov infiltration model
#>
#> Parameter estimates:
#>
#>                   Estimate Std. Error  t-value   p-value
#> alfa:(Intercept)  0.512022   0.015606  32.8097 < 2.2e-16 ***
#> beta:(Intercept) -0.596995   0.031731 -18.8141 < 2.2e-16 ***
#> fc:(Intercept)    0.040941   0.010866   3.7676 0.0003927 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error:
#>
#>  0.01956542 (57 degrees of freedom)

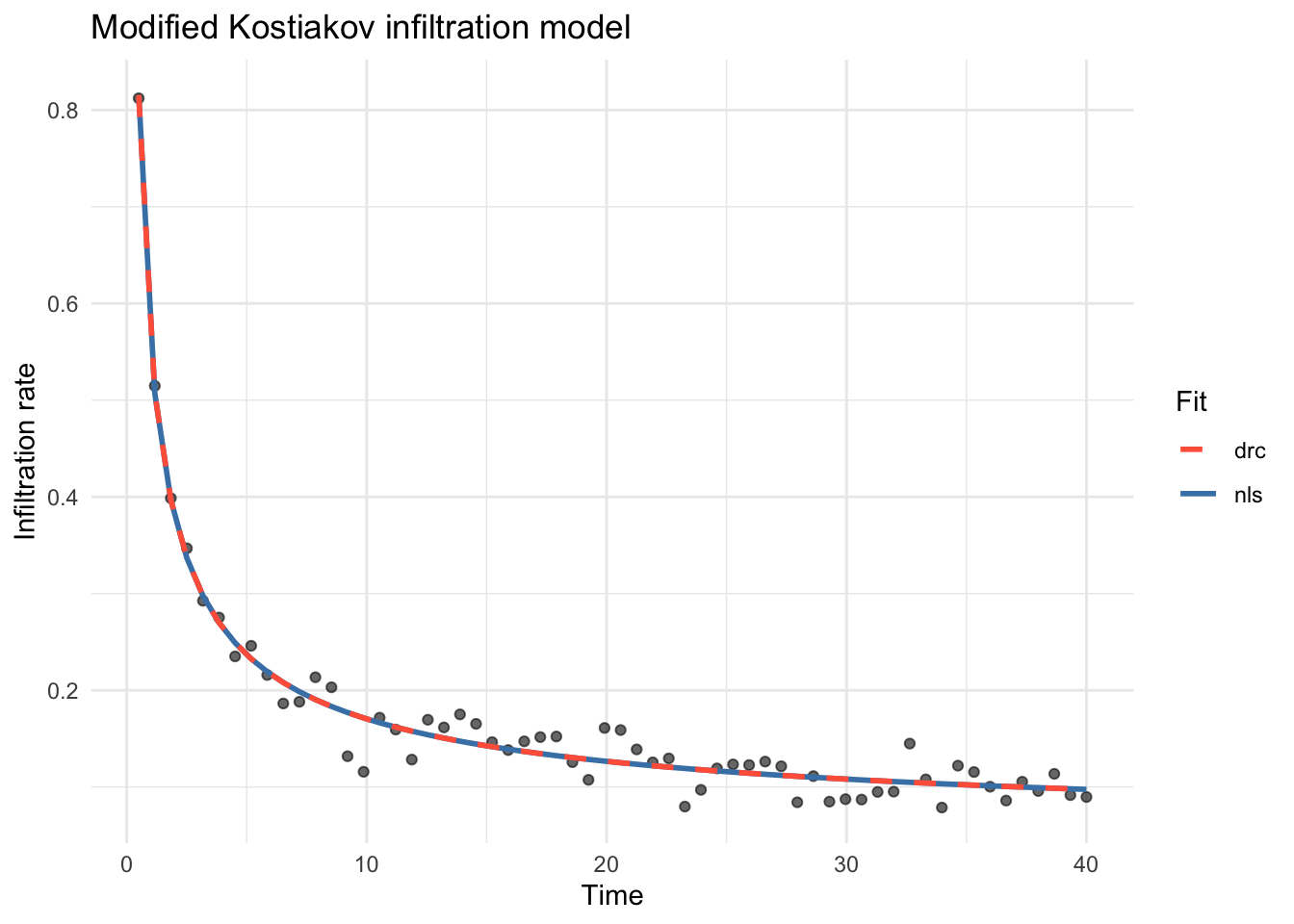

Plot

df3$fit_nls <- predict(mod_nls3)
df3$fit_drc <- predict(mod_drc3)

ggplot(df3, aes(x, y)) +
  geom_point(alpha = 0.6) +
  geom_line(aes(y = fit_nls, colour = "nls"), linewidth = 1) +
  geom_line(
    aes(y = fit_drc, colour = "drc"),
    linewidth = 1,
    linetype = "dashed"
  ) +
  scale_colour_manual(values = c(nls = "steelblue", drc = "tomato")) +
  labs(
    title = "Modified Kostiakov infiltration model",
    x = "Time",
    y = "Infiltration rate",
    colour = "Fit"
  ) +
  theme_minimal()
