These functions provide Negative Exponential Model equation (expneg.fun()), as well as the self-starters for the nls() (SSexpneg()) and drc::drm() functions (DRCexpneg()).
Arguments
- x
A numeric vector of values (e.g., time, dose).
- a
The horizontal asymptote of the response as
xtends to infinity.- b
The initial offset from the asymptote at
x = 0, i.e. \(y(0) = a + b\).- c
The rate parameter in the exponent. Negative values yield decay toward
a; positive values yield growth away froma.
Value
expneg.fun() and SSexpneg() return a numeric value, while DRCexpneg() returns a list containing the nonlinear function and the self starter function.
Details
The model is defined as:
$$y = a + b \, e^{cx}$$
where a is the horizontal asymptote as x tends to infinity,
b is the initial offset from the asymptote at x = 0
(i.e. \(y(0) = a + b\)), and c is the rate parameter. Negative
values of c yield decay toward a; positive values yield
growth away from a.
See also
Other non-linear functions, self-starters:
chaprich.fun(),
exp3.fun(),
expneg2.fun(),
invpoly1.fun(),
invpoly2.fun(),
invpoly3.fun(),
kostmod.fun(),
varexp.fun(),
vargauss.fun(),
varsph.fun()
Examples
x <- seq(0, 10, length.out = 50)
y <- expneg.fun(x, a = 5, b = -4, c = -0.4) + rnorm(50, sd = 0.1)
df <- data.frame(x = x, y = y)
mod = nls(y ~ SSexpneg(x, a, b, c), data = df)
summary(mod)
#>
#> Formula: y ~ SSexpneg(x, a, b, c)
#>
#> Parameters:
#> Estimate Std. Error t value Pr(>|t|)
#> a 4.97445 0.03475 143.14 <2e-16 ***
#> b -4.04913 0.05613 -72.14 <2e-16 ***
#> c -0.40735 0.01427 -28.54 <2e-16 ***
#> ---
#> Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
#>
#> Residual standard error: 0.1026 on 47 degrees of freedom
#>
#> Number of iterations to convergence: 3
#> Achieved convergence tolerance: 4.572e-07
#>

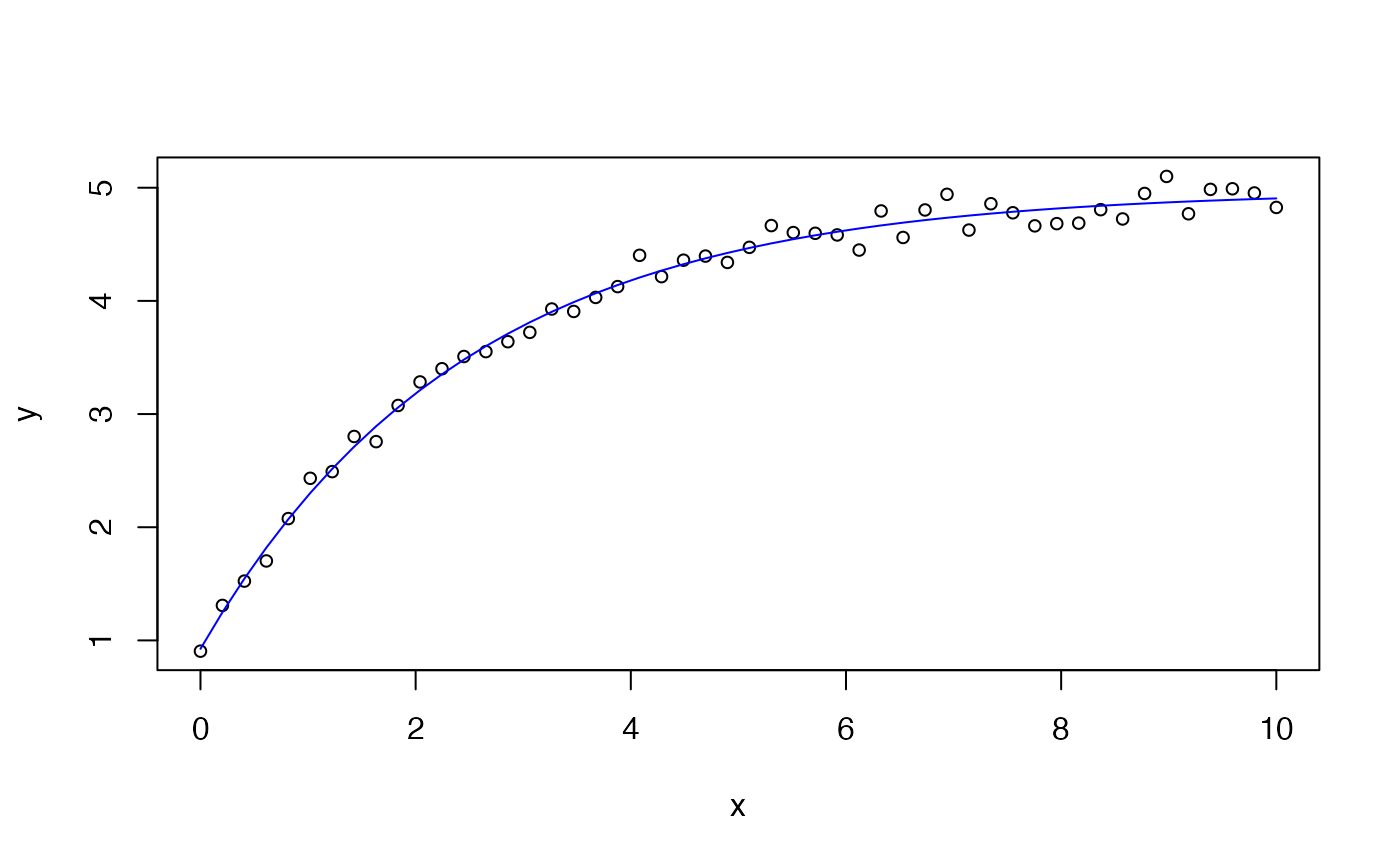

plot(x, y, cex = 0.8)
lines(x, predict(mod), col = 'blue')
if (FALSE) { # \dontrun{
mod = drc::drm(y ~ x, data = df, fct = DRCexpneg())
summary(mod)
plot(mod, log = "")
} # }
