These functions provide Gaussian Variogram Model equation (vargauss.fun()), as well as the self-starters for the nls() (SSvargauss()) and drc::drm() functions (DRCvargauss()).
Arguments
- x
A numeric vector of non-negative lag distances.
- nug
The nugget: the semivariance at zero lag distance (intercept).
- psill
The partial sill: the difference between the sill (total variance) and the nugget.
- range
The range parameter controlling the rate of increase. The practical range at which ~95 percent of the sill is reached is approximately \(\sqrt{3} \times \text{range}\).
Value
vargauss.fun() and SSvargauss() return a numeric value, while DRCvargauss() returns a list containing the nonlinear function and the self starter function.
Details
The model is defined as:
$$y = \text{nug} + \text{psill} \left(1 - e^{-(x / \text{range})^2}\right)$$
where nug is the nugget (semivariance at zero lag), psill is
the partial sill, and range controls the rate of increase. The
practical range at which ~95 percent of the sill is reached is approximately
\(\sqrt{3} \times \text{range}\). The Gaussian model has a smooth,
parabolic behaviour near the origin compared to the concave-up exponential.
The Gaussian variogram model is commonly used in geostatistics to describe spatial autocorrelation with a smooth, parabolic behaviour near the origin. Like the exponential model, it approaches the sill asymptotically, but has an S-shaped rise compared to the concave-up exponential curve.
See also
Other non-linear functions, self-starters:
chaprich.fun(),
exp3.fun(),
expneg.fun(),
expneg2.fun(),
invpoly1.fun(),
invpoly2.fun(),
invpoly3.fun(),
kostmod.fun(),
varexp.fun(),
varsph.fun()
Examples
x <- seq(0, 100, length.out = 50)
y <- vargauss.fun(x, nug = 0.2, psill = 0.8, range = 20) + rnorm(50, sd = 0.02)
df <- data.frame(x = x, y = y)
mod = nls(y ~ SSvargauss(x, nug, psill, range), data = df)
summary(mod)
#>
#> Formula: y ~ SSvargauss(x, nug, psill, range)
#>
#> Parameters:
#> Estimate Std. Error t value Pr(>|t|)
#> nug 0.197555 0.007649 25.83 <2e-16 ***
#> psill 0.802862 0.007915 101.43 <2e-16 ***
#> range 20.187738 0.251812 80.17 <2e-16 ***
#> ---
#> Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
#>
#> Residual standard error: 0.01638 on 47 degrees of freedom
#>
#> Number of iterations to convergence: 5
#> Achieved convergence tolerance: 2.056e-06
#>

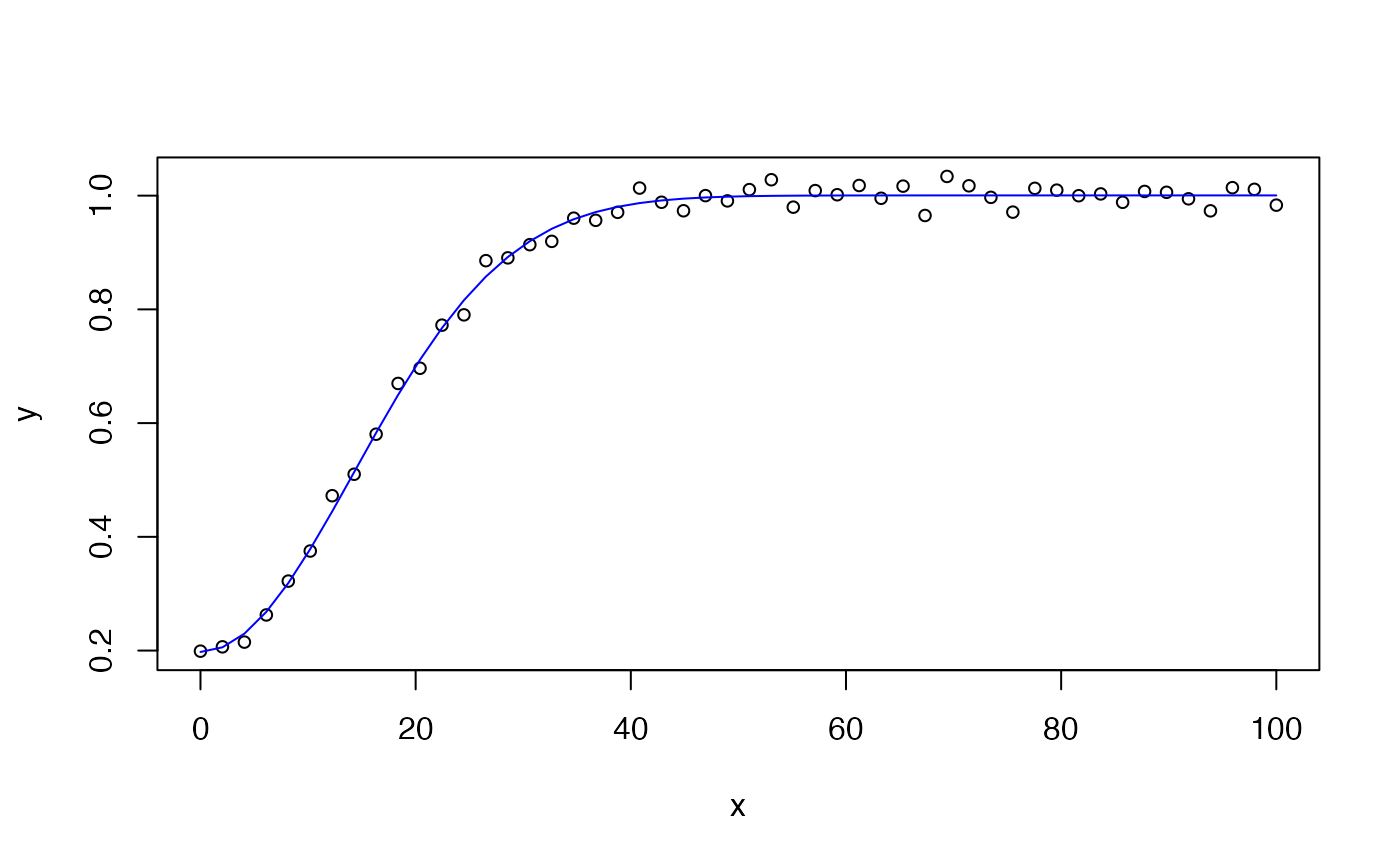

plot(x, y, cex = 0.8)
lines(x, predict(mod), col = 'blue')
if (FALSE) { # \dontrun{
mod = drc::drm(y ~ x, data = df, fct = DRCvargauss())
summary(mod)
plot(mod, log = "")
} # }
